ESXi-8.0U1 更新8.0 U2笔记

一、下载所需补丁包

从vmware官网，根据系统型号，下载对应的新版本补丁包。具体网址：https://customerconnect.vmware.com/patch （需要注册并登录账号）

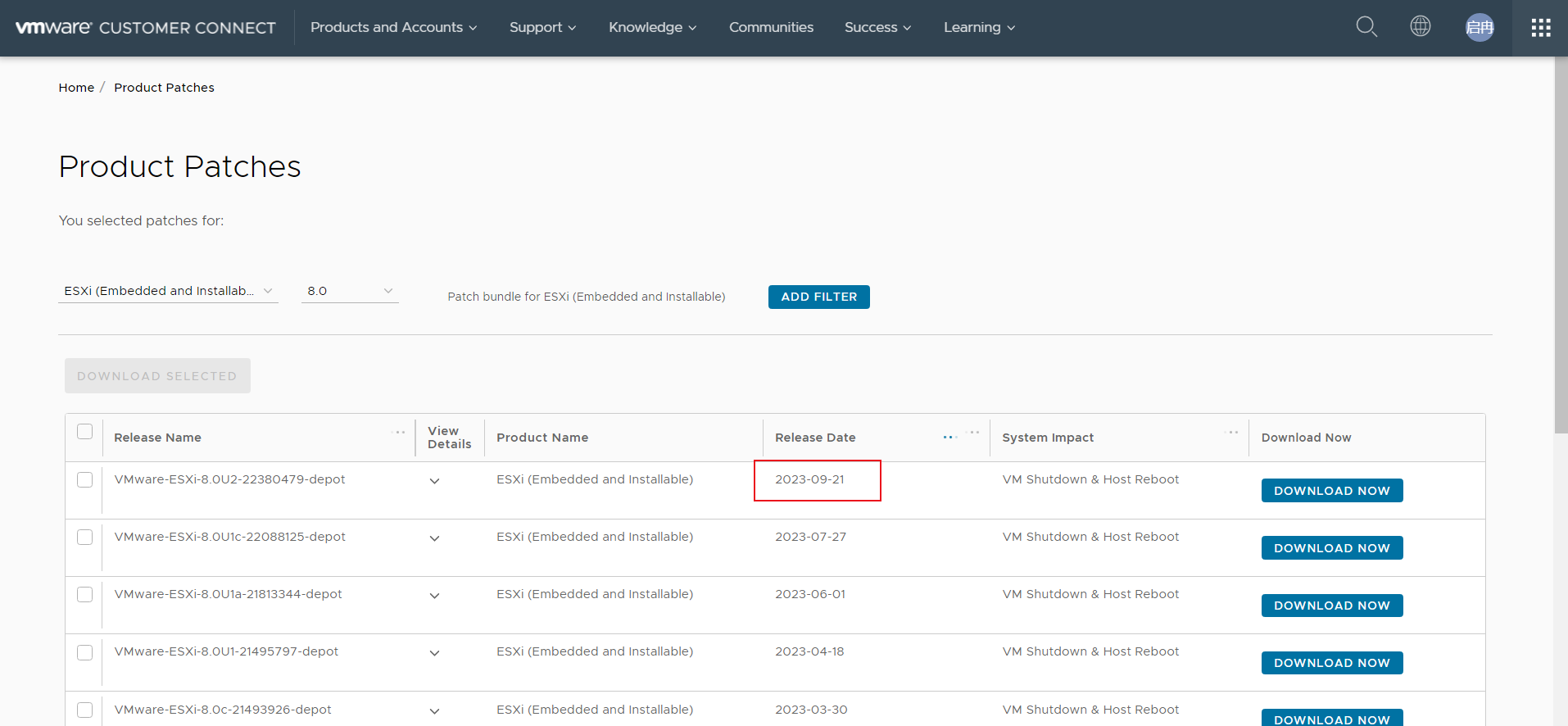

目前最新补丁见下图：

二、上传补丁

将刚才下载的VMware-ESXi-8.0U2-22380479-depot.zip，通过ESXi后台的“储存浏览器“”，上传至主机.

2.1 查看镜像

[root@localhost:~] esxcli software sources profile list -d /vmfs/volumes/63a97815-3993e3f0-fcc4-00e26963e4f0/VMware-ESXi-8.0U2-22380479-depot.zip
Name                          Vendor        Acceptance Level  Creation Time        Modification Time
----------------------------  ------------  ----------------  -------------------  -----------------
ESXi-8.0U2-22380479-standard  VMware, Inc.  PartnerSupported  2023-09-21T00:00:00  2023-09-21T00:00:00
ESXi-8.0U2-22380479-no-tools  VMware, Inc.  PartnerSupported  2023-09-21T00:00:00  2023-09-04T22:07:43

2.2 升级

[root@localhost:~] esxcli software profile update -d /vmfs/volumes/63a97815-3993e3f0-fcc4-00e26963e4f0/VMware-ESXi-8.0U2-22380479-depot.zip -p ESXi-8.0U2-22380479-standard
 [DependencyError]
 On platform embeddedEsx, VIB VMW_bootbank_vmkusb-nic-fling_1.12-1vmw.801.0.0.64098092 requires vmkapi_incompat_2_11_0_0, but the requirement cannot be satisfied within the ImageProfile.
 Please refer to the log file for more details.

2.2.1 卸载VMKUSB后继续升级
[root@localhost:~]  esxcli software vib remove -n vmkusb-nic-fling
Removal Result
   Message: The update completed successfully, but the system needs to be rebooted for the changes to be effective.
   VIBs Installed:
   VIBs Removed: VMW_bootbank_vmkusb-nic-fling_1.12-1vmw.801.0.0.64098092
   VIBs Skipped:
   Reboot Required: true
   DPU Results:

2.2.3 升级完成

[root@localhost:~] esxcli software profile update -d /vmfs/volumes/63a97815-3993e3f0-fcc4-00e26963e4f0/VMware-ESXi-8.0U2-22380479-depot.zip -p ESXi-8.0U2-22380479-standard
Update Result
   Message: The update completed successfully, but the system needs to be rebooted for the changes to be effective.
   VIBs Installed: VMW_bootbank_atlantic_1.0.3.0-12vmw.802.0.0.22380479, VMW_bootbank_bcm-mpi3_8.6.1.0.0.0-1vmw.802.0.0.22380479, VMW_bootbank_bfedac-esxio_0.1-1vmw.802.0.0.22380479, VMW_bootbank_bnxtnet_225.0.4.0-8vmw.802.0.0.22380479, VMW_bootbank_bnxtroce_225.0.4.0-8vmw.802.0.0.22380479, VMW_bootbank_brcmfcoe_12.0.1500.3-4vmw.802.0.0.22380479, VMW_bootbank_cndi-igc_1.2.10.0-1vmw.802.0.0.22380479, VMW_bootbank_dwi2c-esxio_0.1-7vmw.802.0.0.22380479, VMW_bootbank_dwi2c_0.1-7vmw.802.0.0.22380479, VMW_bootbank_elxiscsi_12.0.1200.0-11vmw.802.0.0.22380479, VMW_bootbank_elxnet_12.0.1250.0-8vmw.802.0.0.22380479, VMW_bootbank_i40en_1.11.3.10-1vmw.802.0.0.22380479, VMW_bootbank_iavmd_3.0.0.1010-9vmw.802.0.0.22380479, VMW_bootbank_icen_1.5.2.12-1vmw.802.0.0.22380479, VMW_bootbank_igbn_1.4.11.7-2vmw.802.0.0.22380479, VMW_bootbank_intelgpio_0.1-1vmw.802.0.0.22380479, VMW_bootbank_ionic-cloud_20.0.0-48vmw.802.0.0.22380479, VMW_bootbank_ionic-en-esxio_20.0.0-49vmw.802.0.0.22380479, VMW_bootbank_ionic-en_20.0.0-49vmw.802.0.0.22380479, VMW_bootbank_irdman_1.3.1.26-1vmw.802.0.0.22380479, VMW_bootbank_iser_1.1.0.2-1vmw.802.0.0.22380479, VMW_bootbank_ixgben_1.7.1.41-1vmw.802.0.0.22380479, VMW_bootbank_lpfc_14.2.641.5-32vmw.802.0.0.22380479, VMW_bootbank_lpnic_11.4.62.0-1vmw.802.0.0.22380479, VMW_bootbank_lsi-mr3_7.726.02.00-2vmw.802.0.0.22380479, VMW_bootbank_lsi-msgpt2_20.00.06.00-4vmw.802.0.0.22380479, VMW_bootbank_lsi-msgpt35_27.00.00.00-1vmw.802.0.0.22380479, VMW_bootbank_lsi-msgpt3_17.00.13.00-2vmw.802.0.0.22380479, VMW_bootbank_mlnx-bfbootctl-esxio_0.1-6vmw.802.0.0.22380479, VMW_bootbank_mnet-esxio_0.1-1vmw.802.0.0.22380479, VMW_bootbank_mtip32xx-native_3.9.8-1vmw.802.0.0.22380479, VMW_bootbank_ne1000_0.9.0-2vmw.802.0.0.22380479, VMW_bootbank_nenic_1.0.35.0-7vmw.802.0.0.22380479, VMW_bootbank_nfnic_5.0.0.35-5vmw.802.0.0.22380479, VMW_bootbank_nhpsa_70.0051.0.100-4vmw.802.0.0.22380479, VMW_bootbank_nipmi_1.0-1vmw.802.0.0.22380479, VMW_bootbank_nmlx5-cc-esxio_4.23.0.66-2vmw.802.0.0.22380479, VMW_bootbank_nmlx5-cc_4.23.0.66-2vmw.802.0.0.22380479, VMW_bootbank_nmlx5-core-esxio_4.23.0.66-2vmw.802.0.0.22380479, VMW_bootbank_nmlx5-core_4.23.0.66-2vmw.802.0.0.22380479, VMW_bootbank_nmlx5-rdma-esxio_4.23.0.66-2vmw.802.0.0.22380479, VMW_bootbank_nmlx5-rdma_4.23.0.66-2vmw.802.0.0.22380479, VMW_bootbank_nmlxbf-gige-esxio_2.2-1vmw.802.0.0.22380479, VMW_bootbank_nmlxbf-pmc-esxio_0.1-6vmw.802.0.0.22380479, VMW_bootbank_ntg3_4.1.13.0-4vmw.802.0.0.22380479, VMW_bootbank_nvme-pcie-esxio_1.2.4.11-1vmw.802.0.0.22380479, VMW_bootbank_nvme-pcie_1.2.4.11-1vmw.802.0.0.22380479, VMW_bootbank_nvmerdma_1.0.3.9-1vmw.802.0.0.22380479, VMW_bootbank_nvmetcp-esxio_1.0.1.8-1vmw.802.0.0.22380479, VMW_bootbank_nvmetcp_1.0.1.8-1vmw.802.0.0.22380479, VMW_bootbank_nvmxnet3-ens-esxio_2.0.0.23-5vmw.802.0.0.22380479, VMW_bootbank_nvmxnet3-ens_2.0.0.23-5vmw.802.0.0.22380479, VMW_bootbank_nvmxnet3-esxio_2.0.0.31-9vmw.802.0.0.22380479, VMW_bootbank_nvmxnet3_2.0.0.31-9vmw.802.0.0.22380479, VMW_bootbank_penedac-esxio_0.1-1vmw.802.0.0.22380479, VMW_bootbank_pengpio-esxio_0.1-1vmw.802.0.0.22380479, VMW_bootbank_pensandoatlas_1.46.0.E.28.1.312-2vmw.802.0.0.21879230, VMW_bootbank_penspi-esxio_0.1-1vmw.802.0.0.22380479, VMW_bootbank_pvscsi-esxio_0.1-5vmw.802.0.0.22380479, VMW_bootbank_pvscsi_0.1-5vmw.802.0.0.22380479, VMW_bootbank_qcnic_1.0.15.0-22vmw.802.0.0.22380479, VMW_bootbank_qedentv_3.40.5.73-4vmw.802.0.0.22380479, VMW_bootbank_qedrntv_3.40.5.73-4vmw.802.0.0.22380479, VMW_bootbank_qfle3_1.0.67.0-33vmw.802.0.0.22380479, VMW_bootbank_qfle3f_1.0.51.0-33vmw.802.0.0.22380479, VMW_bootbank_qfle3i_1.0.15.0-20vmw.802.0.0.22380479, VMW_bootbank_qflge_1.1.0.11-2vmw.802.0.0.22380479, VMW_bootbank_rd1173-esxio_0.1-1vmw.802.0.0.22380479, VMW_bootbank_rdmahl_1.0.0-1vmw.802.0.0.22380479, VMW_bootbank_rste_2.0.2.0088-7vmw.802.0.0.22380479, VMW_bootbank_sfvmk_2.4.0.2010-15vmw.802.0.0.22380479, VMW_bootbank_smartpqi_80.4495.0.5000-7vmw.802.0.0.22380479, VMW_bootbank_spidev-esxio_0.1-1vmw.802.0.0.22380479, VMW_bootbank_vmkata_0.1-1vmw.802.0.0.22380479, VMW_bootbank_vmksdhci-esxio_1.0.3-3vmw.802.0.0.22380479, VMW_bootbank_vmksdhci_1.0.3-3vmw.802.0.0.22380479, VMW_bootbank_vmkusb-esxio_0.1-18vmw.802.0.0.22380479, VMW_bootbank_vmkusb_0.1-18vmw.802.0.0.22380479, VMW_bootbank_vmw-ahci_2.0.17-1vmw.802.0.0.22380479, VMware_bootbank_bmcal-esxio_8.0.2-0.0.22380479, VMware_bootbank_bmcal_8.0.2-0.0.22380479, VMware_bootbank_clusterstore_8.0.2-0.0.22380479, VMware_bootbank_cpu-microcode_8.0.2-0.0.22380479, VMware_bootbank_crx_8.0.2-0.0.22380479, VMware_bootbank_drivervm-gpu-base_8.0.2-0.0.22380479, VMware_bootbank_elx-esx-libelxima.so_12.0.1200.0-6vmw.802.0.0.22380479, VMware_bootbank_esx-base_8.0.2-0.0.22380479, VMware_bootbank_esx-dvfilter-generic-fastpath_8.0.2-0.0.22380479, VMware_bootbank_esx-ui_2.14.0-21993070, VMware_bootbank_esx-update_8.0.2-0.0.22380479, VMware_bootbank_esx-xserver_8.0.2-0.0.22380479, VMware_bootbank_esxio-base_8.0.2-0.0.22380479, VMware_bootbank_esxio-combiner-esxio_8.0.2-0.0.22380479, VMware_bootbank_esxio-combiner_8.0.2-0.0.22380479, VMware_bootbank_esxio-dvfilter-generic-fastpath_8.0.2-0.0.22380479, VMware_bootbank_esxio-update_8.0.2-0.0.22380479, VMware_bootbank_esxio_8.0.2-0.0.22380479, VMware_bootbank_gc-esxio_8.0.2-0.0.22380479, VMware_bootbank_gc_8.0.2-0.0.22380479, VMware_bootbank_infravisor_8.0.2-0.0.22380479, VMware_bootbank_loadesx_8.0.2-0.0.22380479, VMware_bootbank_loadesxio_8.0.2-0.0.22380479, VMware_bootbank_lsuv2-hpv2-hpsa-plugin_1.0.0-4vmw.802.0.0.22380479, VMware_bootbank_lsuv2-intelv2-nvme-vmd-plugin_2.7.2173-2vmw.802.0.0.22380479, VMware_bootbank_lsuv2-lsiv2-drivers-plugin_1.0.2-1vmw.802.0.0.22380479, VMware_bootbank_lsuv2-nvme-pcie-plugin_1.0.0-1vmw.802.0.0.22380479, VMware_bootbank_lsuv2-oem-dell-plugin_1.0.0-2vmw.802.0.0.22380479, VMware_bootbank_lsuv2-oem-lenovo-plugin_1.0.0-2vmw.802.0.0.22380479, VMware_bootbank_lsuv2-smartpqiv2-plugin_1.0.0-10vmw.802.0.0.22380479, VMware_bootbank_native-misc-drivers-esxio_8.0.2-0.0.22380479, VMware_bootbank_native-misc-drivers_8.0.2-0.0.22380479, VMware_bootbank_qlnativefc_5.4.69.0-23vmw.802.0.0.22380479, VMware_bootbank_trx_8.0.2-0.0.22380479, VMware_bootbank_vdfs_8.0.2-0.0.22380479, VMware_bootbank_vds-vsip_8.0.2-0.0.22380479, VMware_bootbank_vmware-esx-esxcli-nvme-plugin-esxio_1.2.0.52-1vmw.802.0.0.22380479, VMware_bootbank_vmware-esx-esxcli-nvme-plugin_1.2.0.52-1vmw.802.0.0.22380479, VMware_bootbank_vmware-hbrsrv_8.0.2-0.0.22380479, VMware_bootbank_vsan_8.0.2-0.0.22380479, VMware_bootbank_vsanhealth_8.0.2-0.0.22380479, VMware_locker_tools-light_12.3.0.22234872-22380479
   VIBs Removed: VMW_bootbank_atlantic_1.0.3.0-11vmw.801.0.0.21495797, VMW_bootbank_bcm-mpi3_8.4.2.0.0.0-1vmw.801.0.0.21495797, VMW_bootbank_bfedac-esxio_0.1-1vmw.801.0.0.21495797, VMW_bootbank_bnxtnet_223.0.0.0-1vmw.801.0.0.21495797, VMW_bootbank_bnxtroce_223.0.0.0-1vmw.801.0.0.21495797, VMW_bootbank_brcmfcoe_12.0.1500.3-4vmw.801.0.0.21495797, VMW_bootbank_cndi-igc_1.2.10.0-1vmw.801.0.0.21495797, VMW_bootbank_dwi2c-esxio_0.1-7vmw.801.0.0.21495797, VMW_bootbank_dwi2c_0.1-7vmw.801.0.0.21495797, VMW_bootbank_elxiscsi_12.0.1200.0-11vmw.801.0.0.21495797, VMW_bootbank_elxnet_12.0.1250.0-8vmw.801.0.0.21495797, VMW_bootbank_i40en_1.11.3.5-1vmw.801.0.0.21495797, VMW_bootbank_iavmd_3.0.0.1010-8vmw.801.0.0.21495797, VMW_bootbank_icen_1.5.1.21-1vmw.801.0.0.21495797, VMW_bootbank_igbn_1.4.11.7-1vmw.801.0.0.21495797, VMW_bootbank_intelgpio_0.1-1vmw.801.0.0.21495797, VMW_bootbank_ionic-en-esxio_20.0.0-40vmw.801.0.0.21495797, VMW_bootbank_ionic-en_20.0.0-40vmw.801.0.0.21495797, VMW_bootbank_irdman_1.3.1.25-1vmw.801.0.0.21495797, VMW_bootbank_iser_1.1.0.2-1vmw.801.0.0.21495797, VMW_bootbank_ixgben_1.7.1.40-1vmw.801.0.0.21495797, VMW_bootbank_lpfc_14.2.560.8-23vmw.801.0.0.21495797, VMW_bootbank_lpnic_11.4.62.0-1vmw.801.0.0.21495797, VMW_bootbank_lsi-mr3_7.724.03.00-1vmw.801.0.0.21495797, VMW_bootbank_lsi-msgpt2_20.00.06.00-4vmw.801.0.0.21495797, VMW_bootbank_lsi-msgpt35_26.00.00.00-3vmw.801.0.0.21495797, VMW_bootbank_lsi-msgpt3_17.00.13.00-2vmw.801.0.0.21495797, VMW_bootbank_mlnx-bfbootctl-esxio_0.1-1vmw.801.0.0.21495797, VMW_bootbank_mnet-esxio_0.1-1vmw.801.0.0.21495797, VMW_bootbank_mtip32xx-native_3.9.8-1vmw.801.0.0.21495797, VMW_bootbank_ne1000_0.9.0-2vmw.801.0.0.21495797, VMW_bootbank_nenic_1.0.35.0-5vmw.801.0.0.21495797, VMW_bootbank_nfnic_5.0.0.35-4vmw.801.0.0.21495797, VMW_bootbank_nhpsa_70.0051.0.100-4vmw.801.0.0.21495797, VMW_bootbank_nmlx5-core-esxio_4.23.0.36-14vmw.801.0.0.21495797, VMW_bootbank_nmlx5-core_4.23.0.36-14vmw.801.0.0.21495797, VMW_bootbank_nmlx5-rdma-esxio_4.23.0.36-14vmw.801.0.0.21495797, VMW_bootbank_nmlx5-rdma_4.23.0.36-14vmw.801.0.0.21495797, VMW_bootbank_nmlxbf-gige-esxio_2.2-1vmw.801.0.0.21495797, VMW_bootbank_nmlxbf-pmc-esxio_0.1-1vmw.801.0.0.21495797, VMW_bootbank_ntg3_4.1.10.0-4vmw.801.0.0.21495797, VMW_bootbank_nvme-pcie-esxio_1.2.4.7-1vmw.801.0.0.21495797, VMW_bootbank_nvme-pcie_1.2.4.7-1vmw.801.0.0.21495797, VMW_bootbank_nvmerdma_1.0.3.9-1vmw.801.0.0.21495797, VMW_bootbank_nvmetcp_1.0.1.7-1vmw.801.0.0.21495797, VMW_bootbank_nvmxnet3-ens-esxio_2.0.0.23-2vmw.801.0.0.21495797, VMW_bootbank_nvmxnet3-ens_2.0.0.23-2vmw.801.0.0.21495797, VMW_bootbank_nvmxnet3-esxio_2.0.0.31-2vmw.801.0.0.21495797, VMW_bootbank_nvmxnet3_2.0.0.31-2vmw.801.0.0.21495797, VMW_bootbank_penedac-esxio_0.1-1vmw.801.0.0.21495797, VMW_bootbank_pengpio-esxio_0.1-1vmw.801.0.0.21495797, VMW_bootbank_pensandoatlas_1.46.0.E.28.1.303-2vmw.800.1.0.20796881, VMW_bootbank_penspi-esxio_0.1-1vmw.801.0.0.21495797, VMW_bootbank_pvscsi-esxio_0.1-5vmw.801.0.0.21495797, VMW_bootbank_pvscsi_0.1-5vmw.801.0.0.21495797, VMW_bootbank_qcnic_1.0.15.0-22vmw.801.0.0.21495797, VMW_bootbank_qedentv_3.40.5.70-7vmw.801.0.0.21495797, VMW_bootbank_qedrntv_3.40.5.70-3vmw.801.0.0.21495797, VMW_bootbank_qfle3_1.0.67.0-32vmw.801.0.0.21495797, VMW_bootbank_qfle3f_1.0.51.0-32vmw.801.0.0.21495797, VMW_bootbank_qfle3i_1.0.15.0-20vmw.801.0.0.21495797, VMW_bootbank_qflge_1.1.0.11-1vmw.801.0.0.21495797, VMW_bootbank_rd1173-esxio_0.1-1vmw.801.0.0.21495797, VMW_bootbank_rdmahl_1.0.0-1vmw.801.0.0.21495797, VMW_bootbank_rste_2.0.2.0088-7vmw.801.0.0.21495797, VMW_bootbank_sfvmk_2.4.0.2010-15vmw.801.0.0.21495797, VMW_bootbank_smartpqi_80.4385.0.200-1vmw.801.0.0.21495797, VMW_bootbank_spidev-esxio_0.1-1vmw.801.0.0.21495797, VMW_bootbank_vmkata_0.1-1vmw.801.0.0.21495797, VMW_bootbank_vmksdhci-esxio_1.0.3-3vmw.801.0.0.21495797, VMW_bootbank_vmksdhci_1.0.3-3vmw.801.0.0.21495797, VMW_bootbank_vmkusb-esxio_0.1-16vmw.801.0.0.21495797, VMW_bootbank_vmkusb_0.1-16vmw.801.0.0.21495797, VMW_bootbank_vmw-ahci_2.0.15-1vmw.801.0.0.21495797, VMware_bootbank_bmcal-esxio_8.0.1-0.10.21813344, VMware_bootbank_bmcal_8.0.1-0.10.21813344, VMware_bootbank_clusterstore_8.0.1-0.10.21813344, VMware_bootbank_cpu-microcode_8.0.1-0.10.21813344, VMware_bootbank_crx_8.0.1-0.10.21813344, VMware_bootbank_elx-esx-libelxima.so_12.0.1200.0-6vmw.801.0.0.21495797, VMware_bootbank_esx-base_8.0.1-0.10.21813344, VMware_bootbank_esx-dvfilter-generic-fastpath_8.0.1-0.10.21813344, VMware_bootbank_esx-ui_2.12.0-21482143, VMware_bootbank_esx-update_8.0.1-0.10.21813344, VMware_bootbank_esx-xserver_8.0.1-0.10.21813344, VMware_bootbank_esxio-base_8.0.1-0.10.21813344, VMware_bootbank_esxio-combiner-esxio_8.0.1-0.10.21813344, VMware_bootbank_esxio-combiner_8.0.1-0.10.21813344, VMware_bootbank_esxio-dvfilter-generic-fastpath_8.0.1-0.10.21813344, VMware_bootbank_esxio-update_8.0.1-0.10.21813344, VMware_bootbank_esxio_8.0.1-0.10.21813344, VMware_bootbank_gc-esxio_8.0.1-0.10.21813344, VMware_bootbank_gc_8.0.1-0.10.21813344, VMware_bootbank_loadesx_8.0.1-0.10.21813344, VMware_bootbank_loadesxio_8.0.1-0.10.21813344, VMware_bootbank_lsuv2-hpv2-hpsa-plugin_1.0.0-4vmw.801.0.0.21495797, VMware_bootbank_lsuv2-intelv2-nvme-vmd-plugin_2.7.2173-2vmw.801.0.0.21495797, VMware_bootbank_lsuv2-lsiv2-drivers-plugin_1.0.2-1vmw.801.0.0.21495797, VMware_bootbank_lsuv2-nvme-pcie-plugin_1.0.0-1vmw.801.0.0.21495797, VMware_bootbank_lsuv2-oem-dell-plugin_1.0.0-2vmw.801.0.0.21495797, VMware_bootbank_lsuv2-oem-lenovo-plugin_1.0.0-2vmw.801.0.0.21495797, VMware_bootbank_lsuv2-smartpqiv2-plugin_1.0.0-10vmw.801.0.0.21495797, VMware_bootbank_native-misc-drivers-esxio_8.0.1-0.10.21813344, VMware_bootbank_native-misc-drivers_8.0.1-0.10.21813344, VMware_bootbank_qlnativefc_5.4.69.0-16vmw.801.0.0.21495797, VMware_bootbank_trx_8.0.1-0.10.21813344, VMware_bootbank_vdfs_8.0.1-0.10.21813344, VMware_bootbank_vds-vsip_8.0.1-0.10.21813344, VMware_bootbank_vmware-esx-esxcli-nvme-plugin-esxio_1.2.0.52-1vmw.801.0.0.21495797, VMware_bootbank_vmware-esx-esxcli-nvme-plugin_1.2.0.52-1vmw.801.0.0.21495797, VMware_bootbank_vsan_8.0.1-0.10.21813344, VMware_bootbank_vsanhealth_8.0.1-0.10.21813344, VMware_locker_tools-light_12.2.0.21223074-21495797
   VIBs Skipped:
   Reboot Required: true
   DPU Results:

三、问题遗留

3.1 升级后安装"vmkusb"失败

[root@ESXI8-2:~] esxcli software vib install -v /vmfs/volumes/63a97815-3993e3f0-fcc4-00e26963e4f0/VMW_bootbank_vmkusb-nic-fling_1.12-1vmw.801.0.0.64098092.vib
 [DependencyError]
 On platform embeddedEsx, VIB VMW_bootbank_vmkusb-nic-fling_1.12-1vmw.801.0.0.64098092 requires vmkapi_incompat_2_11_0_0, but the requirement cannot be satisfied within the ImageProfile.
 Please refer to the log file for more details.
